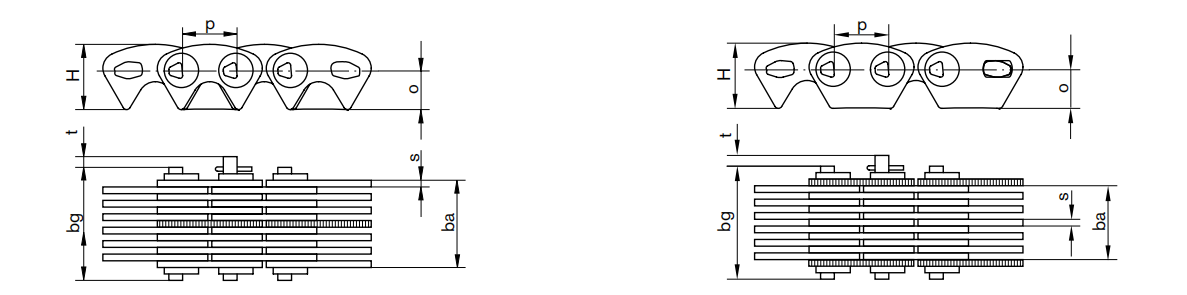

链条编码
|
节距
|
RZ
|
定义宽度
bn
|
工作宽度
ba
|
总宽度
bg
|
设计破断
载荷
|
重量
|
链轮
宽度
|
H
|
o
|
s
|
t
|
|
mm
|
mm
|
mm
|
kN
|
kg/m
|
b
|
mm
|
mm
|
mm
|
mm
|
|
HPC 015A
|
3/8"=
9.525mm
|
10
|
15
|
12.5
|
19.9
|
25.4
|
1.0
|
11.5
|
11.3
|
6.8
|
1.5
|
2.0
|
|
HPC 020A
|
13
|
20
|
17.2
|
24.5
|
30.1
|
1.2
|
16.0
|
|
HPC 025
|
17
|
25
|
26.6
|
30.8
|
39.3
|
1.5
|
30.0
|
|
HPC 030
|
21
|
30
|
32.9
|
37.1
|
48.6
|
1.8
|
35.0
|
|
HPC 040
|
25
|
40
|
39.1
|
43.3
|
57.9
|
2.2
|
45.0
|
|
HPC 050
|
33
|
50
|
51.6
|
55.8
|
76.4
|
2.9
|
55.0
|
|
HPC 065
|
41
|
65
|
64.2
|
68.4
|
94.9
|
3.6
|
70.0
|
|
HPC 320A
|
1/2"=
12.7mm
|
13
|
20
|
17.2
|
26.3
|
34.1
|
1.6
|
16.0
|
15.2
|
9.0
|
1.5
|
2.5
|
|
HPC 325
|
17
|
25
|
26.6
|
32.6
|
52.7
|
2.0
|
30.0
|
|
HPC 330
|
21
|
30
|
32.9
|
38.9
|
65.1
|
2.4
|
35.0
|
|
HPC 350
|
33
|
50
|
51.6
|
57.6
|
102.3
|
3.8
|
55.0
|
|
HOC 375
|
49
|
75
|
76.7
|
82.7
|
152.0
|
5.6
|
80.0
|
|
HPC 3100
|
65
|
100
|
101.7
|
107.7
|
201.6
|
7.5
|
105.0
|
|
HPC 3125
|
81
|
125
|
126.8
|
132.8
|
251.3
|
9.3
|
130.0
|
|
HPC 525
|
3/4"=
19.05mm
|
13
|
25
|
27.0
|
34.0
|
80.1
|
3.0
|
30.0
|
22.5
|
13.5
|
2.0
|
3.5
|
|
HPC 540
|
21
|
40
|
43.7
|
50.7
|
129.4
|
4.9
|
50.0
|
|
HPC 550
|
25
|
50
|
52.0
|
59.0
|
154.0
|
5.8
|
55.0
|
|
HPC 585
|
41
|
85
|
85.3
|
92.3
|
252.6
|
9.5
|
90.0
|
|
HPC 5100
|
49
|
100
|
101.9
|
108.9
|
301.9
|
11.4
|
105.0
|
|
HPC 5125
|
61
|
125
|
126.9
|
133.9
|
375.9
|
14.1
|
130.0
|
|
HPC 5150
|
73
|
150
|
151.8
|
158.8
|
449.8
|
16.9
|
155.0
|
|
HPC 5200
|
97
|
200
|
201.8
|
208.8
|
597.7
|
22.5
|
205.0
|
|
HPC 640
|
1"=
25.4mm
|
13
|
40
|
40.2
|
48.2
|
152.4
|
6.0
|
45.0
|
30.0
|
18.0
|
3.0
|
4.0
|
|
HPC 650
|
17
|
50
|
52.6
|
60.6
|
199.4
|
7.9
|
55.0
|
|
HPC 665
|
21
|
65
|
65.0
|
73.0
|
246.3
|
9.7
|
70.0
|
|
HPC 675
|
25
|
75
|
77.4
|
85.4
|
293.2
|
11.6
|
80.0
|
|
HPC 6100
|
33
|
100
|
102.1
|
110.1
|
387.0
|
15.3
|
105.0
|
|
HPC 6125
|
41
|
125
|
126.9
|
134.9
|
480.9
|
19.0
|
130.0
|
|
HPC 6150
|
49
|
150
|
151.7
|
159.7
|
574.7
|
22.7
|
155.0
|
|
HPC 6200
|
65
|
200
|
201.2
|
209.2
|
762.4
|
30.1
|
205.0
|
|
HPC 850
|
1 1/2"=
38.1mm
|
17
|
50
|
52.8
|
64.8
|
303.4
|
11.8
|
60.0
|
45.0
|
27.0
|
3.0
|
6.0
|
|
HPC 865
|
21
|
65
|
65.2
|
77.2
|
374.8
|
14.6
|
75.0
|
|
HPC 875
|
25
|
75
|
77.6
|
89.6
|
446.2
|
17.4
|
85.0
|
|
HPC 8100
|
33
|
100
|
102.5
|
114.5
|
589.0
|
22.9
|
110.0
|
|
HPC 8125
|
41
|
125
|
127.3
|
139.3
|
731.8
|
28.5
|
135.0
|
|
HPC 8150
|
49
|
150
|
152.1
|
164.1
|
874.6
|
34.1
|
160.0
|
|
HPC 8200
|
65
|
200
|
201.8
|
213.8
|
1160.2
|
45.2
|
210.0
|
· RZ(排数)=每个关节的所有连接链板数量——可按要求提供其他节距和宽度。
· HPC齿形链，开放式供货，如果不指明的话会带开口销锁。
· 成环链条需要偶数数量链节，奇数数量链节没有办法关闭。
· 奇数数量链节只允许链条的两端连接到外部的部分。
|
|
